Texas Air Salavgae

*** PARTING OUT ***


1968 Piper PA28R-180 Arrow

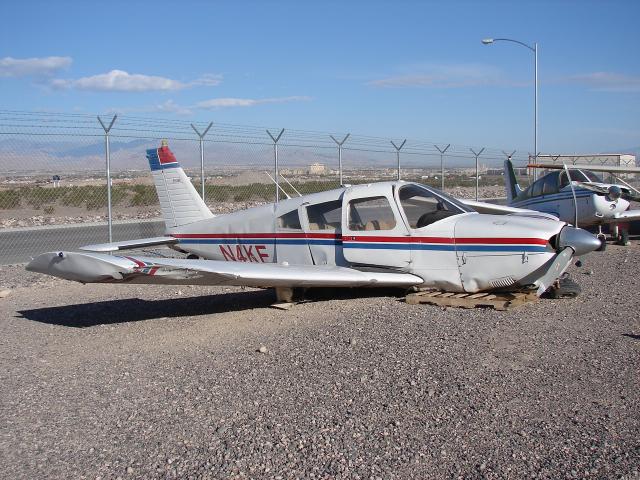

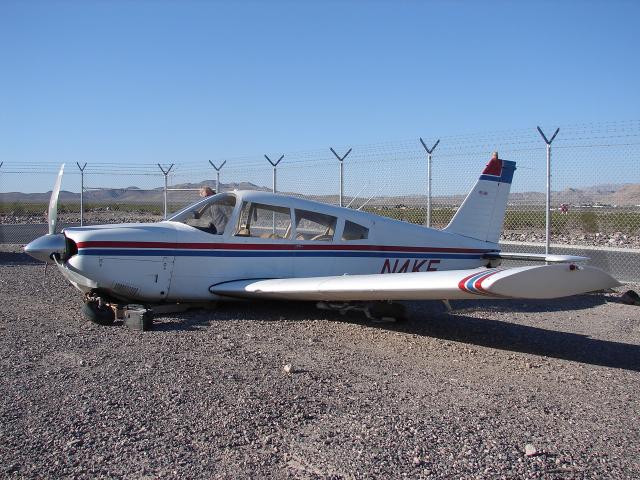

The photos below represent
the salvaged aircraft prior
to dismantling.






Parts listed on this page are from a salvaged  1968 Piper PA28R-180 Arrow












Cessna - 0442143-2 - FERRULE (1-3/4 dia) (1-1/4 W) (3/8 hole)

Cessna - 0442143-2 - FERRULE (1-3/4 dia) (1-1/4 W) (3/8 hole)

Cessna - 0731605-4 - Tip Dorsal

Hartzell - 38672-806 - Spinner 3 Blade Hartzell O-360 Series (See Photos)

Piper - 62074-00 - SPAR - Main outboard left

Piper - 62730-00 - FITTING - Left LH

Piper - 62745-00 - Pillow Block Torque Shaft Support

Piper - 62745-00 - Pillow Block Torque Shaft Support

Piper - 62845-02 - SPROCKET - Control column

Piper - 63398-00 - Skin Vertical Fin LH

Piper - 63455-00 - PLATE - Rudder bar support

Piper - 63455-00 - PLATE - Rudder bar support

Piper - 63456-00 - BLOCK - Rudder bar support top & bottom

Piper - 63501-00 - Fitting Vertical Fin

Piper - 63504-00 - REAR SPAR - Vertical Fin

Piper - 63585-01 - TAB - Stabilator trim right ( Damaged on underside )

Piper - 65704-02 - BACK - Rear seat

Piper - 66793-00 - DOOR ASSEMBLY - Baggage compartment

Piper - 67012-00 - LINK. - Landing gear torque - PA28R

Piper - 67012-00 - Torque Link.

Piper - 67028-00 - Qty (2) HOOK - Main gear truss

Piper - 67028-00 - HOOK - Main gear truss

Piper - 67071-00 - BRACKET- Main gear cylinder LH

Piper - 67090-00 - DOOR ASSEMBLY - Main gear LH (CRACKED)

Piper - 67173-00 - BAR - Rudder

Piper - 67176-00 - SUPPORT - Rudder bar

Piper - 67360-00 & 67359-00 - ROLLER & PLATES - Nose gear door link

Piper - 67521-00 - MANIFOLD - Hydraulic right

Piper - 67550-01 - SUPPORT - Aileron bell crank lower-LH (Item has crack at screw hole) See Photos.

Piper - 67559-00 - HEAD - Pressure vacuum Pitot (unheated)

Piper - 67700-02 - TUBE ASSEMBLY - Fuel line

Piper - 67700-03 - TUBE - Fuel line (See details) LH

Piper - 67700-14 - TUBE ASSEMBLY - Nose gear to right manifold

Piper - 67700-16 - TUBE - Main gear to left manifoId

Piper - 67700-17 - TUBE ASSEMBLY - Main gear to right manifold

Piper - 67700-19 - TUBE ASSEMBLY - Main gear to right manifold

Piper - 67700-21 - TUBE ASSEMBLY - Nose gear top

Piper - 67700-31 - TUBE - Main Gear to Left Manifold

Piper - 67700-34 - TUBE ASSEMBLY - Hydraulic valve to left manifold

Piper - 67723-01 - PLATE - Aft Wing Access Right RH Fairing

Piper - 67758-00 - Shoulder BUSHING - Trunnion - PA28R

Piper - 68129-02 - AILERON - Left ( CORE Condition )

Piper - 72091-00 - STRAINER -FUEL TANK (FINGER)

Piper - 80122-88 - Washer Nose Gear - PA28R

Stewart Warner - 819484 - Blank Gauge Face - Gage

Stewart Warner - 819484 - Blank Gauge Face - Gage

Piper - NPN - BLOCK From Arm Assembly - PA28R

Piper - NPN - SEAT - Front Seat back

Piper - NPN - SEAT - Front Seat back

Wico - X16799 - RELAY - Overvoltage WICO
