P/N: 31903-02  Alt P/N: 31903-002

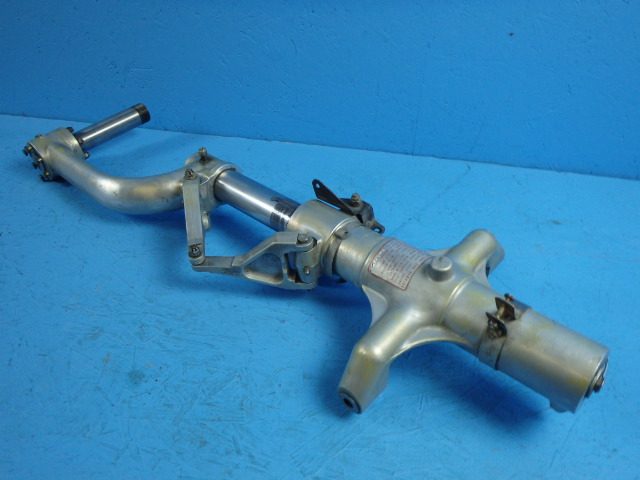

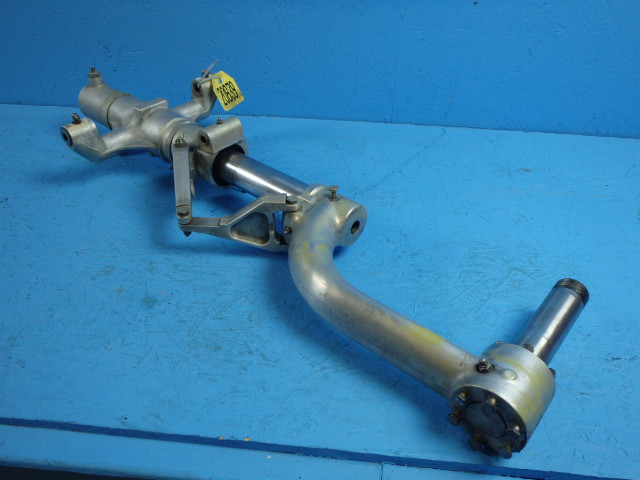

MFR/Title: Piper - STRUT ASSEMBLY - Main gear

Item from a 1975 Piper PA23-250 Aztec

Alts: 32527-00 HOUSING ASSEMBLY - Main gear strut 32527-000
751 368 BUSHING - Housing assembly (PAC 31766-00) 751-368
751 367 BUSHING - (PAC-31785-00) (.4395 O.D.) Un-notched 751-367
43256-06 BUSHING - (.4496 O.D.) Notched 43256-006
751 416 BUSHING - Drag brace (NAS77-7-68) (453 723) 751-416
753 000 TUBE - Orifice (PAC 31775-00) 753-000
31776-00 PLATE - Orifice 31776-000
751 363 BEARING - Piston (PAC 31779-00) 751-363
01821-06 PIN - Piston 01821-006
31782-00 SPACER - Gland 31782-000
31780-00 BEARING - Gland (PAC 31780-00) 31780-000
401 388 BOLT - (AN6H5A) 401-388

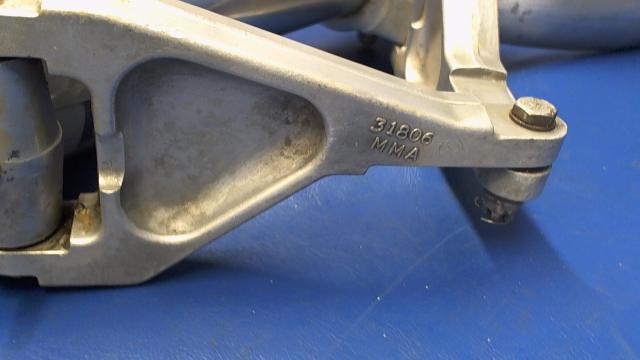

31805-06 LINK ASSEMBLY - Torque 31805-006
453 721 BUSHING - (PAC 31796-00) 453-721
31824-02 YOKE, ROD AND AXLE ASSEMBLY 31824-002
752 765 PLUG - (PAC 31791-00) 752-765
751 367 BUSHING - (PAC 31785-00) (.4395 O.D.) Un-notched 751-367
43256-06 BUSHING - (.4496 O.D.) Notched 43256-006
752 720 "O" RING - (AN6227-25) (484 695) 752-720
402 329 BOLT - (AN174-32A) 402-329
402 331 BOLT - (AN174-34A) 402-331
752 814 RING - Retaining (NAS50-131) (484 756) 752-814
752 815 RING - Retaining (NAS50-262) (484 757) 752-815
752 722 GASKET - "0" Ring (AN6230-6) (462 035) 752-722
752 713 PACKING - "0" Ring (AN6227-15) (484 712) 752-713
751 370 BOLT - (AN174-13) (402 313) 751-370
402 344 BOLT - (AN175-32) 402-344
752 721 PACKING - "O" Ring (AN6227-31) (484 734) 752-721
455 124 CORD - (AN809-1) 455-124
453 124 BODY - (AN812-1) 453-124
460 691 LUBRICATOR - (AN944-101) 460-691
752 311 LUBRICATOR - (MS15001-4) (460 801) 752-311

  ItemID: 20839
This item has not been priced.

For assistance, contact a sales representative.
