Texas Air Salavgae

*** PARTING OUT ***


1961 Piper PA24-250 Comanche

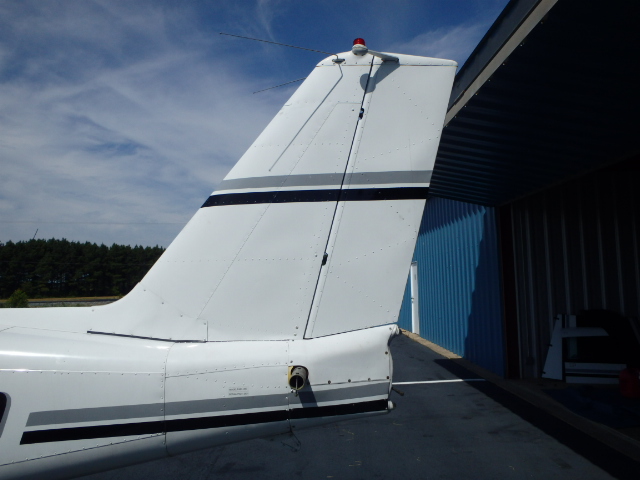

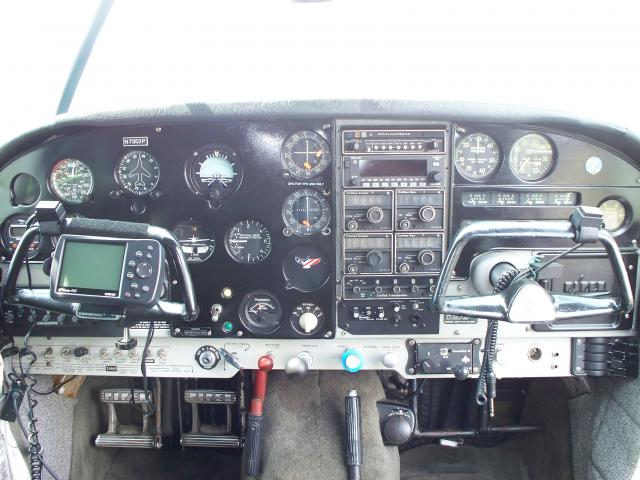

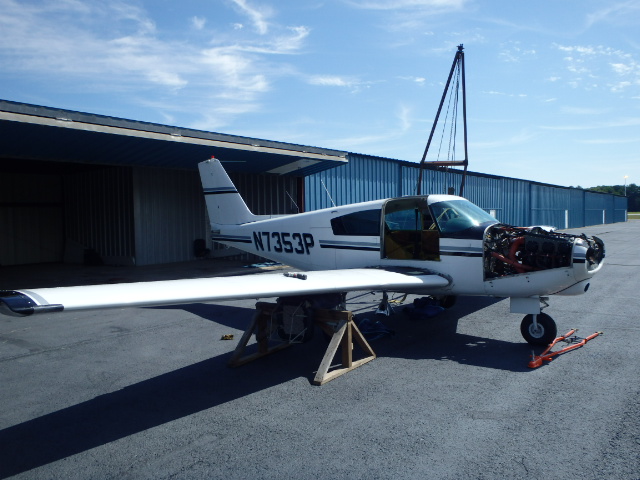

The photos below represent
the salvaged aircraft prior
to dismantling.














Parts listed on this page are from a salvaged  1961 Piper PA24-250 Comanche












Piper - . - Landing Light

Piper - . - Landing Light

Stewart Warner - 1501857 - INSTRUMENT - Ammeter AMPS

Stewart Warner - 1508675 - INSTRUMENT - OIL pressure

Piper - 17365-02 - Pad-Jack

Piper - 17365-02 - Pad-Jack

Piper - 17766-33 - Hose-Brake Lower

Piper - 18316-02 - Rod-Aileron Control

AIM - 200-6 - DIRECTIONAL GYRO 52D54 TSO

Piper - 20193-35 - Stabilator RH (Patched - See details) Less trim tab

Piper - 20193-36 - Stabilator LH (DENTED SEE DETAILS)

Piper - 20205-00 - COLLAR ASSEMBLY - Stabilator torque LH

Piper - 20256-00 - Bellcrank-LH Aileron

Piper - 20256-01 - Bellcrank-Aileron Right

Piper - 20304-42 - FLAP LH (Skin damage - See details)

Piper - 20304-43 - FLAP RH (Small patch - See details)

Piper - 20393-00 - Fitting-Main Gear Left Rear Attachment

Piper - 20394-00 - Fitting-Main Gear Right Rear Attachment

Piper - 20404-00 - Fairing-Vertical Fin

Piper - 20428-01 - BULKHEAD - Fuselage aft section top right

Piper - 20500-27 - ANGLE - Fuselage aft section right

Piper - 20600-99 - ANGLE ASSEMBLY - Sta. 70 to Sta. 105 lower right

Piper - 20620-00 - Rod-Door Latch Pull

Piper - 20721-00 - WEIGHT - Aileron balance

Piper - 20729-16 - Rudder(See Details)

Piper - 20730-06 - Fin-Vertical

Piper - 20735-03 - Link Assembly - Nose gear torque

Piper - 20735-03 - Link Assembly - Nose gear torque

Piper - 20743-00 - SHAFT - Door handle

Piper - 20757-00 - Fitting-Main Gear Left Forward Attachment

Piper - 20760-00 - FITTING ASSEMBLY- Main gear side brace support LH

Piper - 20760-01 - Fitting-Main Gear Side Brace Support RH

Piper - 20768-00 - LINK ASSEMBLY - Main gear side brace lower LH

Piper - 20768-01 - Link-Main Gear Side Brace Lower RH

Piper - 20785-00 - Bearing

Piper - 20786-02 - BEARING - Landing gear strut tube

Piper - 20807-00 - Latch-Cabin Door

Piper - 20824-00 - PLATE- Brake torque LH

Piper - 20824-01 - PLATE ASSEMBLY - Brake torque RH

Piper - 20825-00 - Plug-Wheel End

Piper - 20825-00 - Plug-Wheel End

Piper - 20825-00 - Plug-Wheel End

Piper - 20825-00 - Plug-Wheel End

Piper - 20828-00 - Stud - Main Gear

Piper - 20828-00 - Stud - Main Gear

Piper - 20835-00 - BRACKET - Tab control drum support LH

Piper - 20835-01 - BRACKET - Tab control drum support RH

Piper - 20836-00 - BELLCRANK - Stabilator tab control

Piper - 20838-00 - ARM ASSEMBLY - Stabilator Tab Actuator

Piper - 20922-00 - Structure-Cabin Door(See Details)

Piper - 21062-00 - TUBE - Engine bottom cowl support

Piper - 21068-00 - Bracket - Gear Door LH

Piper - 21173-00 - Spacer - Spring Attachment

Piper - 21173-00 - Spacer - Spring Attachment

Piper - 21174-00 - STRAP - Main gear spring attachment

Piper - 21174-00 - Strap - Main Gear Spring Attachment

Piper - 21175-00 - Bracket - Main Gear Spring Attachment Left

Piper - 21175-01 - BRACKET ASSEMBLY - Main gear spring attachment RH

Piper - 21178-00 - SWIVEL ASSEMBLY- Side brace spring attachment (See details)

Piper - 21208-00 - Plate-Auxiliary Door Latch Trim

Piper - 21215-00 - Link - Gear Safety Switch Arm LH

Piper - 21219-00 - Terminal and Rod - Gear safety switch actuating LH

Piper - 21221-00 - Bracket - Gear Safety Switch Mounting LH

Piper - 21235-00 - Plate-Door Latch Trim

Piper - 21317-00 - HORN - Nose gear door retraction (HOME MADE - SEE PHOTOS)

Piper - 21474-00 - Seal-Auxiliary Door Latch

Piper - 21475-00 - Plate-Seal Retaining

Piper - 21497-36 - MOUNT ASSEMBLY - Engine

Piper - 21552-00 - Tip-LH Wing(Hoerner Style) Fiberglass

Piper - 21557-00 - Tip-Vertical Fin(Fiberglass) Used w/ Strobe Light

Piper - 21605-08 - Fairing-Fuselage Tail(complete) - Cracked - See photos

Piper - 21726-00 - BRACKET - Nose gear aligner support

Piper - 21740-00 - WEIGHT - Stabilator balance

Piper - 21785-02 - Placard-Door Latch

Piper - 21881-00 - Latch-Auxilary Cabin Door (Cracked - See details)

Piper - 21950-14 - COWL ASSEMBLY - Engine bottom w/NOSE BOWL (See Details)

Piper - 21972-00 - ROD ASSEMBLY - Cowl support

Piper - 21972-00 - ROD ASSEMBLY - Cowl support

Piper - 22181-02 - Structure. Assembly-Left Wing w/ Aux Fuel Cell(See Details)

Piper - 22181-03 - Structure. Assembly-Right Wing w/ Aux Fuel Cell

Piper - 22337-00 - BOX ASSEMBLY - Cabin hot air outlet

Piper - 22424-06 - SEAT ASSEMBLY - Front Left

Piper - 22424-07 - SEAT ASSEMBLY - Front Right

Piper - 22574-04 - ANGLE ASSEMBLY - Fuselage aft section lower

Piper - 22574-07 - ANGLE ASSEMBLY - Fuselage aft section upper

Piper - 23195-10 - Tube-Fuel Pressure aluminum

Piper - 25983-00 - FUEL CAP

Piper - 25983-00 - FUEL CAP

Piper - 25983-00 - FUEL CAP

Cleveland - 3070 - WHEEL AND DISC ASSEMBLY - Main (3070 40-5) 451 765

AC - 450 646 - Tachometer (TIME 4213.42)

US GAUGE CO - 450 787 - INSTRUMENT - Suction gauge

Piper - 452 377 - BEARING - Rod end (#HF-6M)

Piper - 464 022 - HANDLE - Door inside See photos

Piper - 472 667 - Light-White Tail

Piper - 472 667 - Light-White Tail

Piper - 484 718 - Snap Ring

Piper - 487 820 - Switch-Limit Switch Removed From RH

Piper - 487 820 - Switch-Limit Switch Removed From LH

Piper - 487 820 - Switch-Limit Switch Removed From LH

Stewart Warner - 5643002 - FUEL QUANITY GAUGE

Stewart Warner - 5643002 - FUEL QUANITY GAUGE

Stewart Warner - 5643002 - FUEL QUANITY GAUGE

Collins - 622-2087-011 - Collins Audio/Marker Beacon

Collins - 622-2092-001 - TDR-950 TRANSPONDER (Wtih tray)

Collins - 622-4477-001 - IND-350A GPS / VOR / LOC Indicator

Kollsman - 671-BU-010 - ALTIMETER-20 000 FT WEU C661011-0105 AS-IS CORE

Piper - 80122-88 - WASHER - MAIN GEAR

Piper - 83302-40 - Spring-Coil

Piper - 86062-86 - Axle-Main Gear Wheel

Piper - 86062-86 - Axle-Main Gear Wheel

Piper - 86062-87 - Spacer-Main Wheel

Piper - 86062-87 - Spacer-Main Wheel

Piper - 86062-87 - Spacer-Main Wheel

Piper - 86062-87 - Spacer-Main Wheel

ACK - A-30 - A-30 Encoder Digitizer Mod 2 with Tray

Piper - AS IS - 687 287 Gauge-Fuel Sending Unit (DOES NOT WORK)

Astronautics - AS-IS 303770 - TURN COORDINATOR - TSO C3c CORE

Narco - AT150 - TRANSPONDER AT 150 TSO

McCauley - B-4820-2 - Pin

McCauley - B-4820-2 - Pin

McCauley - B-4820-2 - Pin

McCauley - B-6631 - Ring

McCauley - B3D32C412-C - 3 Blade Propeller ( Hub Only )

McCauley - C-3903 - Bearing-Retainer

McCauley - C-3903 - Bearing-Retainer

McCauley - C-3903 - Bearing-Retainer

McCauley - C-3903 - Bearing-Retainer

McCauley - C-3903 - Bearing-Retainer

McCauley - C-3903 - Bearing-Retainer

McCauley - C-5727 - Ring

McCauley - C5270-1 - Ring-Bearing Retainer

McCauley - C5270-1 - Ring-Bearing Retainer

McCauley - C5270-1 - Ring-Bearing Retainer

McCauley - D-7086 - Polished Aluminum Spinner Assembly (Blackmac)

Piper - NPN - Window trim set - metal

McCauley - NPN - Bulkhead used with D-7086 3 Blade Spinner

Piper - NPN - Tube Assmbly - Main Gear Strut Orifice

McCauley - P4125642-04 - Cylinder Cap

Piper - SK928-11 - COWL ASSEMBLY - Engine top

Sigtronics - SPA-400 - Intercom TSO 12/24 volts w/wiring and 4 jacks

TCI - SSD120-20 - ENCODER-Altitude Digitizer Model SSD120-20
