Texas Air Salavgae

*** PARTING OUT ***


1958 Piper PA24-250 Comanche

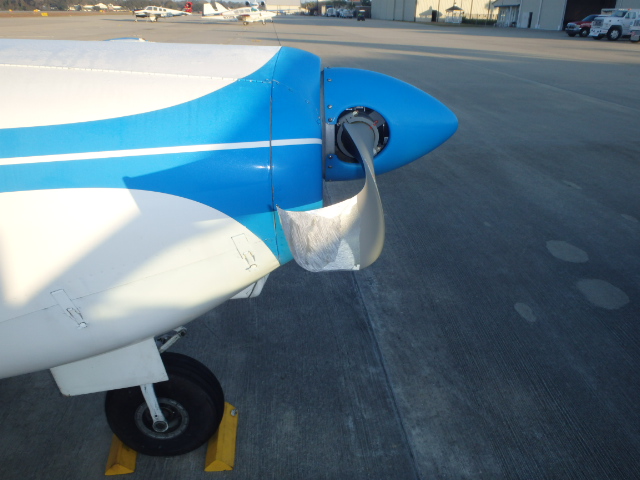

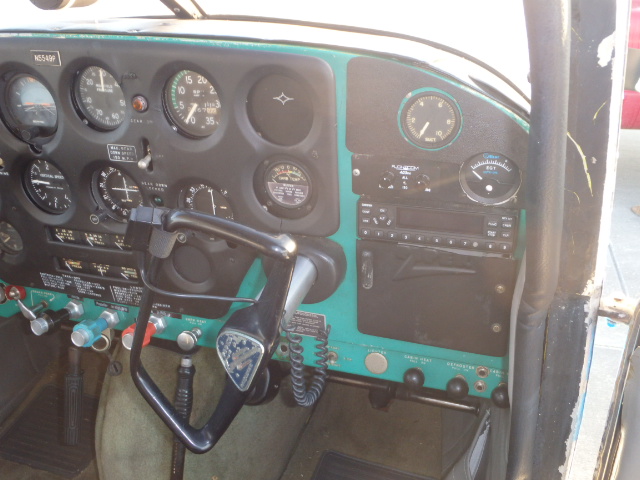

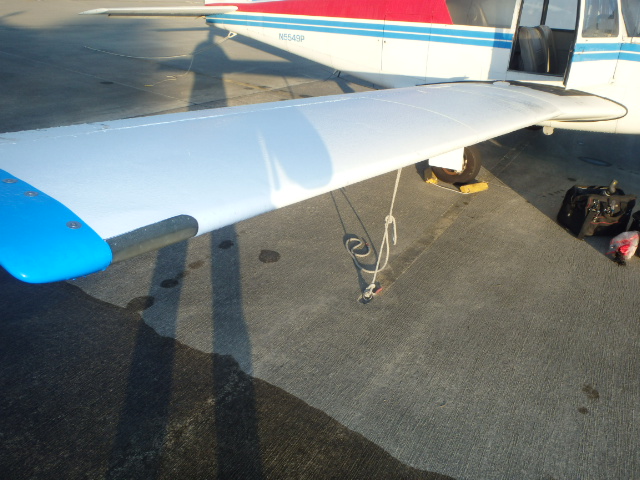

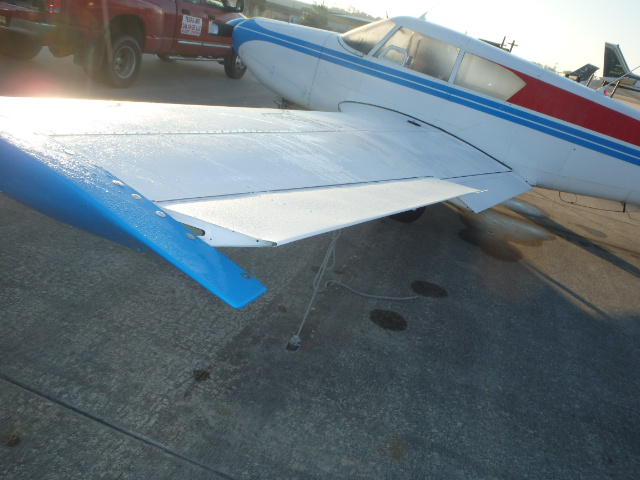

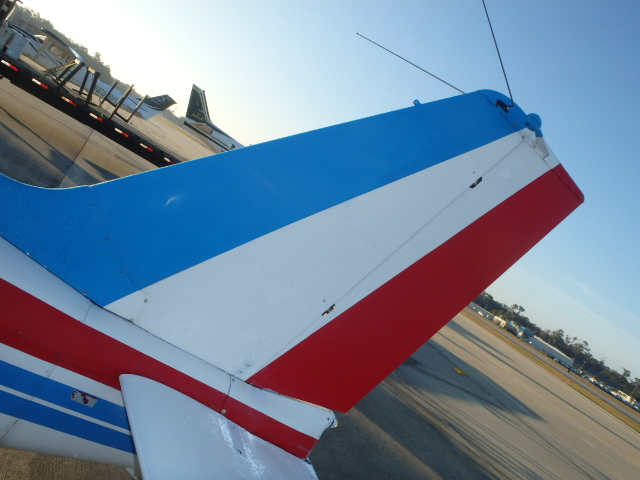

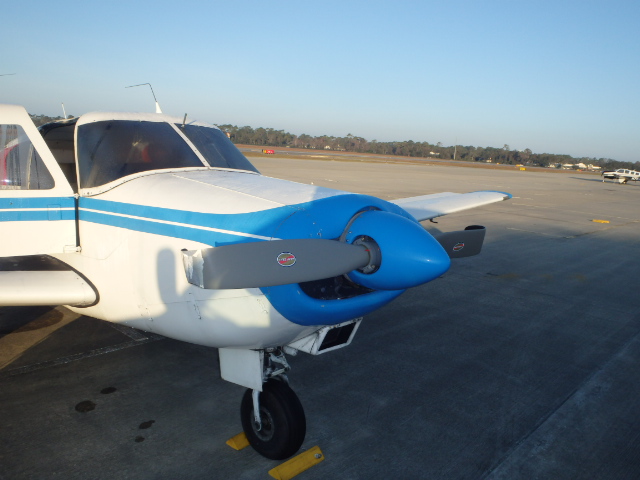

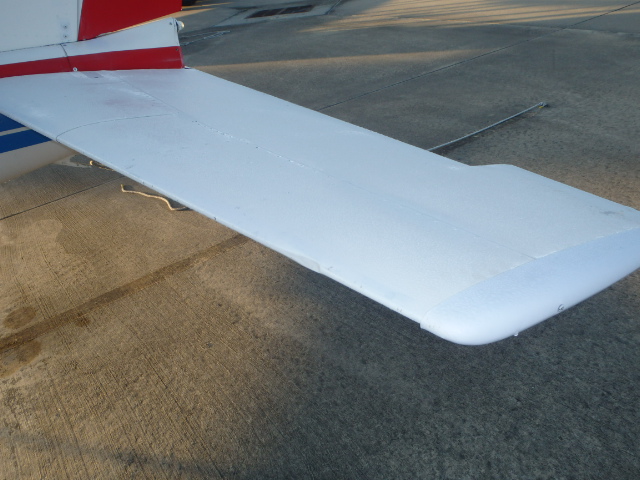

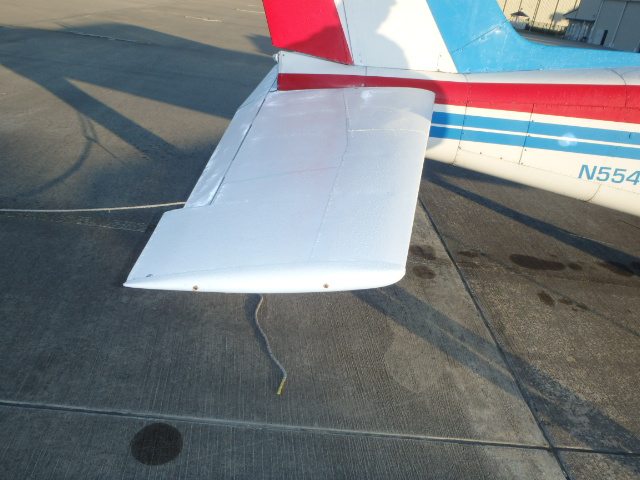

The photos below represent
the salvaged aircraft prior
to dismantling.
















Parts listed on this page are from a salvaged  1958 Piper PA24-250 Comanche












Bendix King - . - TRAY ONLY - KA 134 AUDIO PANEL

King - 066-3056-00 - KI-208 VOR/LOC Indicator

King - 066-3056-01 - KI-209 VOR/LOC CONVERTER GLIDE SLOPE INDICATOR 11 to 33 volts

King - 069-1024-00 - King KX-155 NAV/720 COMM 14V (Several LEDs out - See last photos)

Bendix King - 071-4037-00 - KA 33 AVIONICS COOLING FAN 6 Port 14V TBK-25 BLOWER

Met-Co-Aire - 0808465713-7 - Met-Co-Aire Wing Tips (SET LH & RH) W/STC (FIBERGLASS)

Bendix - 10-51104-4 - MAGNETO SWITCH-IGNITION L/R/BOTH w/PLACARD NO-KEY

Flightcom - 101-0263-00 - 403MC PANEL MOUNT INTERCOM W/5 JACKS

Cessna - 1241029-2 - Spring-Main Gear Door Lock

Cessna - 1241029-2 - Spring-Main Gear Door Lock

Airmarc - 128V - Marker Beacon Indicator - Model 128V

Aircraft Inst. Dev. INC - 13-3006-1 - ALTIMETER ALTITUDE

Piper - 14843-20 - BUSHING- Shim (.125) MLG ARM

Piper - 14843-20 - BUSHING- Shim (.125) MLG ARM

Stewart Warner - 1501857 - INSTRUMENT - Ammeter AMPS

Stewart Warner - 1508675 - INSTRUMENT - OIL pressure

Stewart Warner - 1508677 - INSTRUMENT - Fuel pressure (INOP) CORE AS-IS

AC Delco - 1513480 - INSTRUMENT - OIL TEMP

Rochester - 1585-5-85 - GAGE-OUTSIDE AIR TEMP OAT

Cleveland - 17766-33 - HOSE ASSEMBLY - Brake lower

Cleveland - 17766-33 - HOSE ASSEMBLY - Brake lower

Piper - 17807-00 - GUARD - Landing gear switch

Piper - 17884-02 - SPINNER - Propeller

Piper - 18316-02 - ROD ASSEMBLY - Aileron control (See Details)

Piper - 18316-02 - ROD ASSEMBLY - Aileron control

Piper - 18316-03 - ROD ASSEMBLY - Flap control

Piper - 19513-10 - WASHER - Shim (.035)

Piper - 19513-10 - WASHER - Shim (.035)

Piper - 19513-10 - WASHER - Shim (.035)

Safe Flight - 19807-00 - Plate - Lift Detector Mounting

Piper - 20193-36 - Stabilator LH (DENTED SEE DETAILS)

Piper - 20203-03 - Tube-Stabilator Torque(See Details)

Piper - 20234-00 - Aileron-LH w/Trim Tab

Piper - 20234-01 - Aileron RH (See Details).

Piper - 20256-00 - BELLCRANK ASSEMBLY - Aileron LH

Piper - 20256-01 - BELLCRANK ASSEMBLY - Aileron RH

Piper - 20290-00 - BLOCK - Aileron bellcrank stop

Piper - 20290-00 - BLOCK - Aileron bellcrank stop

Piper - 20377-00 - WING - LH

Piper - 20393-00 - FITTING ASSEMBLY- Main gear rear attachment LH

Piper - 20394-00 - FITTING- Main gear rear attachment RH

Piper - 20396-2 - FITTING- Main spar bottom attachment LH (QTY 2)

Piper - 20396-2 - FITTING- Main spar bottom attachment RH (QTY 2)

Piper - 20404-00 - FAIRING ASSEMBLY - Fin

Piper - 20432-00 - PLATE - Fuselage access cover

Piper - 20476-00 - FITTING - Main spar bottom attachment LH

Piper - 20542-00 - PLATE - Scuff right (See Details)

Piper - 20543-00 - PLATE - Scuff left (See Details)

Piper - 20547-03 - PANEL - Cover 250 (See Details)

Piper - 20589-00 - COMPARTMENT- Glove Map Case (See details)

Piper - 20594-04 - Panel - Hat shelf

Piper - 20729-16 - Rudder (See Details)

Piper - 20730-06 - Fin-Vertical

Piper - 20733-03 - HEADLINING ASSEMBLY- Gray Vinyl (See Details)

Piper - 20757-00 - FITTING ASSEMBLY - Main gear forward attachment LH

Piper - 20757-01 - FITTING ASSEMBLY - Main gear forward attachment RH

Piper - 20760-00 - FITTING ASSEMBLY- Main gear side brace support LH (9/16)

Piper - 20760-01 - FITTING ASSEMBLY- Main gear side brace support RH (9/16)

Piper - 20767-00 - LINK ASSEMBLY- Main gear side brace - upper

Piper - 20767-00 - LINK ASSEMBLY- Main gear side brace - upper

Piper - 20768-00 - LINK ASSEMBLY - Main gear side brace lower LH

Piper - 20768-01 - LINK ASSEMBLY - Main gear side brace lower RH

Piper - 20798-06 - STRUT ASSEMBLY- Main gear LH (See details)

Piper - 20824-00 - PLATE- Brake torque LH

Piper - 20824-01 - PLATE - Brake torque RH

Piper - 20825-00 - PLUG - Wheel end

Piper - 20825-00 - PLUG - Wheel end

Piper - 20825-00 - PLUG - Wheel end

Piper - 20825-00 - PLUG - Wheel end

Piper - 20828-00 - Stud - Main Gear

Piper - 20828-00 - Stud - Main Gear

Piper - 20828-00 - Stud - Main Gear

Piper - 20828-00 - Stud - Main Gear

Piper - 20845-00 - Bracket & Roller- BUNGEE Shock main gear

Piper - 20845-00 - Bracket & Roller- BUNGEE Shock main gear

Piper - 20846-000 - ARM - Landing gear bungee LH

Piper - 20846-01 - Arm-Landing Gear Bungee RH

Piper - 20854-00 - ROD - Wheel axle tie (See Details)

Piper - 20854-00 - ROD - Wheel axle tie

Piper - 20894-00 - COVER - GLARESHIELD Cowl black

Piper - 20910-00 - STRAINER ASSEMBLY - Fuel Tank Finger

Piper - 20910-00 - STRAINER ASSEMBLY - Fuel Tank Finger

Piper - 20922-00 - DOOR- Cabin (See Details)

Piper - 20928-00 - COVER -Control wheel shaft (black)

Piper - 20928-00 - COVER -Control wheel shaft (black)

Piper - 20965-00 - WHEEL YOKE- Control (solid type) 1-1/2 (See Details- Pitted )

Piper - 20965-00 - WHEEL YOKE- Control (solid type) 1-1/2 (See Details - pitted )

Piper - 20984-00 - FAIRING - LH Wing root Lower Left

Piper - 20984-01 - FAIRING - RH Wing root Lower Right

Piper - 21004-00 - LINE ASSEMBLY - Fuel

Piper - 21033-00 - BRACKET ASSEMBLY- Landing gear control support

Piper - 21033-00 - BRACKET ASSEMBLY- Landing gear control support

Piper - 21067-03 - ROD ASSEMBLY - Main gear door actuating

Piper - 21068-00 - Bracket - Gear Door LH (See Details)

Piper - 21068-01 - Bracket - Gear Door RH (See Details)

Piper - 21104-00 - PLATE - Main gear switch actuator LH

Piper - 21104-01 - PLATE - Main gear switch actuator RH

Piper - 21154-00 - DEFLECTOR - Air - BLACK

Piper - 21154-03 - Deflector-Ventilator Air

Piper - 21163-00 - LINE ASSEMBLY- Fuel pressure RH

Piper - 21173-00 - SPACER - Spring Attachment

Piper - 21173-00 - SPACER - Spring Attachment

Piper - 21174-00 - Strap - Main Gear Spring Attachment

Piper - 21174-00 - Strap - Main Gear Spring Attachment

Piper - 21175-00 - BRACKET ASSEMBLY - Main gear spring attachment LH

Piper - 21175-01 - BRACKET- Main gear spring attachment RH

Piper - 21177-00 - BRACKET ASSEMBLY - Carburetor heat control

Piper - 21178-00 - SWIVEL- Side brace spring attachment

Piper - 21178-00 - SWIVEL- Side brace spring attachment

Piper - 21205-03 - LINE ASSEMBLY- Fuel 250

Piper - 21206-00 - BRACKET - Wire support LH

Piper - 21206-01 - BRACKET- Wire support RH

Piper - 21209-00 - Knob-Auxiliary Door Latch Release

Piper - 21215-00 - LINK - Gear safety switch arm LH

Piper - 21219-00 - Terminal and Rod - Gear safety switch actuating LH

Piper - 21220-00 - ARM - Gear switch actuator LH

Piper - 21221-00 - BRACKET - Gear safety switch mounting LH

Piper - 21247-00 - CLIP ASSEMBLY - Muffler shroud

Piper - 21403-00 - BRAKE AND ARM ASSEMBLY

Piper - 21605-08 - FAIRING - Fuselage tail (Not complete)

Piper - 21664-02 - STACK ASSEMBLY - Engine exhaust left (Weld repair - See photos)

Piper - 21685-04 21685-02 - CLAMP - Tail pipe brace inboard outboard

Piper - 21695-32 - COWL ASSEMBLY - Engine bottom (See Details)

RadioShack - 21879-00 - SPEAKER - Radio oval

Piper - 22181-01 - Wing - RH

Piper - 22229-00 - LINE - Gyro horizon to suction gauge tube

Piper - 22574-04 - ANGLE ASSEMBLY - Fuselage aft section lower

Piper - 22699-01 - FLAP - RH (See Details)

Piper - 22855-00 - ROD ASSEMBLY - Flap control

Piper - 22984-00 - Door-Main Gear LH

Piper - 22984-01 - DOOR ASSEMBLY - Main gear RH

Piper - 23504-000 - SHROUD ASSEMBLY - Muffler W/Clamp (See details)

Piper - 24474-00 - CLAMP - Exhaust stack shroud (QTY 2 HALVES)

Piper - 24912-01 - BRACKET - Main gear limit switch RH

AIR TRAC - 30620 - Tire-6.00-6 (6Ply)

AIR TRAC - 30620 - Tire-6.00-6 (6Ply)

Cleveland - 3070 - WHEEL AND DISC ASSEMBLY- Main (See Details)

Piper - 31322-07 - BUNGEE CORD - Shock main gear

Piper - 31322-07 - BUNGEE CORD - Shock main gear

Ranco, Inc. - 31888A - MANIFOLD PRESSURE

Piper - 35725-02 - Pad-Jack

Piper - 35725-02 - Pad-Jack

Piper - 400 757 - CLEVIS BOLT - (AN26-21)

Piper - 400 757 - CLEVIS BOLT - (AN26-21)

Piper - 400 761 - Bolt and nut from Main gear truss

Piper - 400 761 - Bolt and nut from Main gear truss

Piper - 402 960 - BOLT - (NAS464P8A-44)

Piper - 402 960 - BOLT - (NAS464P8A-44)

Piper - 406-660 - NUT- Barrel (#1452-048)

Piper - 406-660 - NUT - Barrel (#1452-048)

Piper - 406-660 - NUT- Barrel (#1452-048)

Piper - 406-660 - NUT - Barrel (#1452-048)

Piper - 450-739 - COMPASS ASSEMBLY - (C-2350-DL4CM) Windshield mounting

Cessna - 451 716 - Brake (#3000-250) - Has pitting See photos

Cleveland - 451 716 - (30-12) Brake Assembly ( Core Parts Only )

BUTLY AIRCRAFT TUBE - 451 735 - TUBE- (6.00 x 6)

BUTLY AIRCRAFT TUBE - 451 735 - TUBE- (6.00 x 6)

Piper - 452 015 - BARREL- Turnbuckle (NAS649-B8S)

Piper - 459 958 - EYE- Turnbuckle (NAS648-8RS)

Alcor Inc - 46150 - Indicator EGT

Piper - 471 080 - KNOB - Tee (KN578A)

Grimes - 472 666 - Light - Green Wing Position RH (A1285)

Piper - 472-667 - LIGHT ASSEMBLY - Tail fairing white (See Details)

Piper - 472-667 - LIGHT ASSEMBLY - Tail fairing white

Piper - 481 621 - PULLEY - Trim cable (AN210-1B) W/Hanger

Piper - 481 621 - PULLEY - Trim cable (AN210-1B) W/Hanger

Piper - 484-348 - REDUCER - (AN919-0D) - Used with 3/16

Piper - 487 820 - SWITCH - Limit Switch removed from LH

Piper - 487 820 - SWITCH - Limit Switch removed from LH

Piper - 487 820 - SWITCH - Limit Switch removed from RH

Wakmann - 550 597 - 8DAYS Clock-8 Day Wind Up(AN5743-L2)

Piper - 63152-00 - Plate-Ventilator Air Deflector

Piper - 687 282 - Gauge-Fuel Sending Unit (CORE)

Piper - 754 181 - KNOB - Ventilator box

Piper - 760 502 - Cabin Door Holder

Stewart Warner - 821108 - INSTRUMENT - Tachometer TIME: 2467.96

Piper - 85062-86 - AXLE (PITTING SEE PHOTOS)

Piper - 85062-86 - AXLE (PITTING SEE PHOTOS)

Piper - 86062-87 - SPACER - Main Wheel

Piper - 86062-87 - SPACER - Main Wheel

Piper - 86062-87 - SPACER - Main Wheel

Piper - 86062-87 - SPACER - Main Wheel

Grimes - A-1425A-2-12 - SPOTLIGHT- Map Light (See Details)

Antenna Development - AD-9 - ANTENNA DEVELOPMENT CO AD-9 108-136 MHZ NAV/GS SPLITTER

Bendix - AN-5825-1 - INDICATOR-VERTICAL CLIMB SPEED MFRs PN:1636-6H-B1

Collins - AN5771-5 - Suction Gauge TYPE F-4 MFR PN:. 200

Terra - AT3000 - ENCODER-Altitude Digitizer Model AT-3000

Comant - CI 122SP - ANTENNA LORAN C

Hartzell - HC-A2VK-1 - 2 Blade Propeller (Hub Only)

NorthStar - M1 - Antenna Coupling Unit (#1011)

Piper - NPN - BRACKET-SWITCH - Safety LH

Piper - NPN - BRACKET - Main gear limit switch LH

Piper - NPN - OVERHEAD CONSOLE (See Details)

Piper - NPN - TRIM - WINDLACE - Cabin Door W/ Retainer (PA24-250 Comanche) See Details

Piper - SET - DEFROST TUBE AND BUTTON

Piper - SET - DEFROST TUBE AND BUTTON

Piper - SET - Panel Set - Lower Cabin Panels- Grey Synthetic Leather (5 Pieces) See Details

Piper - SK928-11 - COWL ASSEMBLY - Engine top (See Details)
