Texas Air Salavgae

*** PARTING OUT ***


1962 Piper PA24-180 Comanche

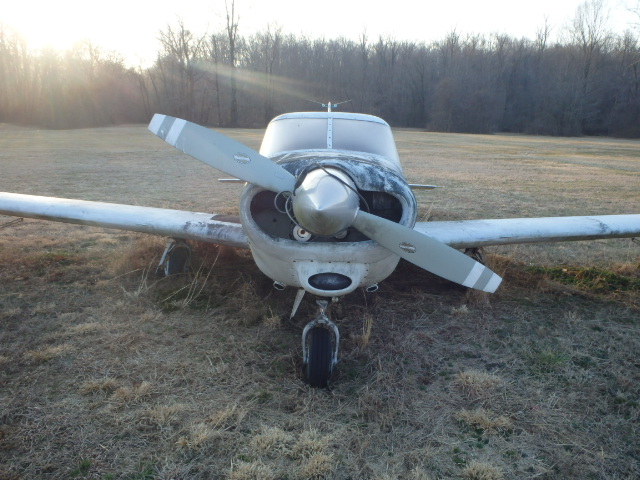

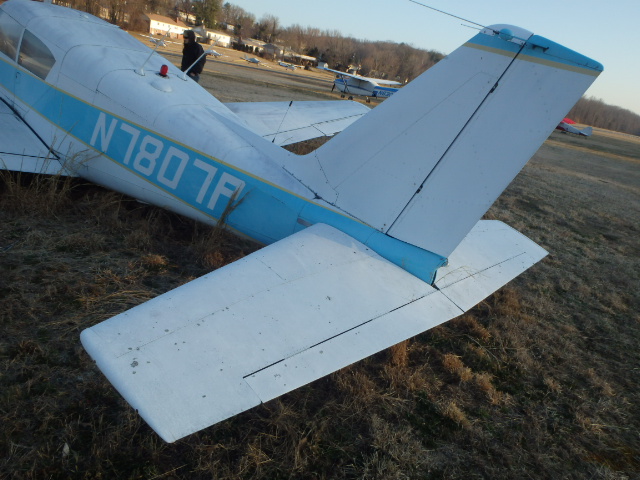

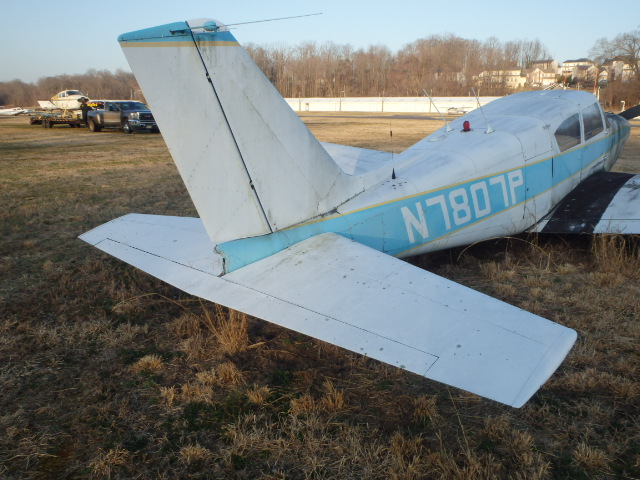

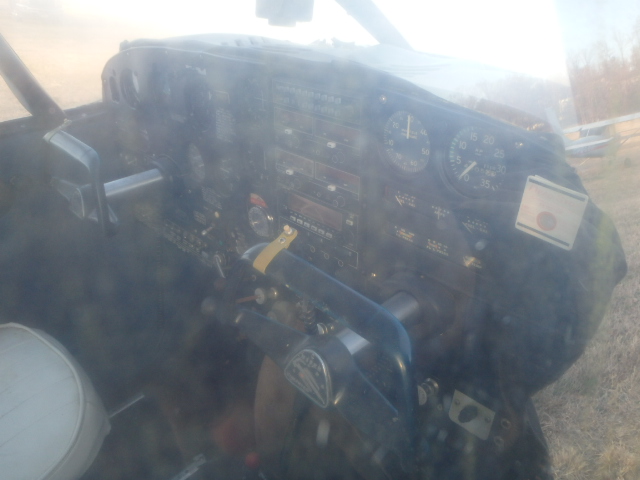

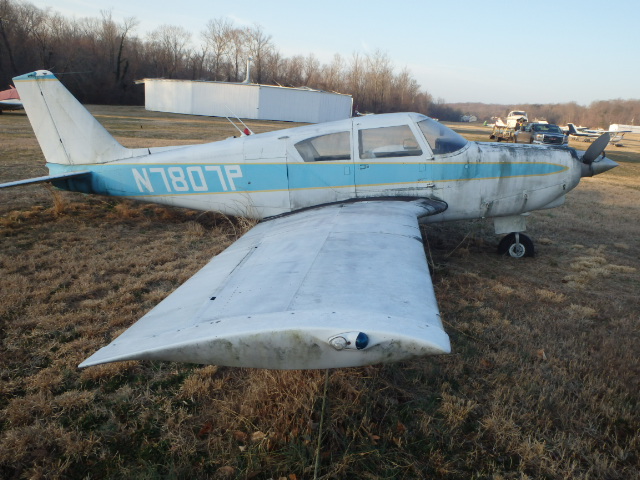

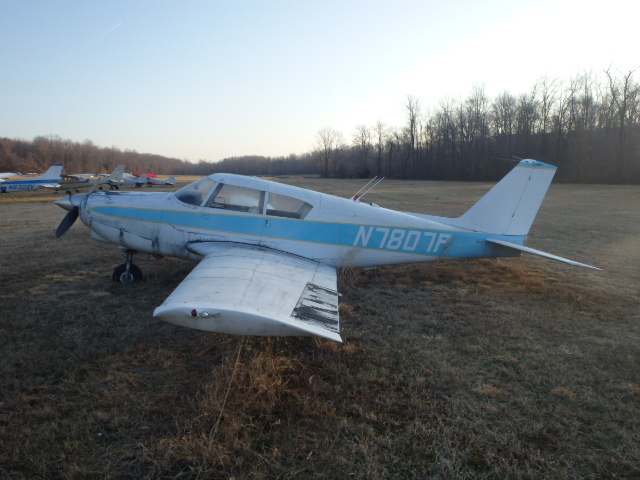

The photos below represent
the salvaged aircraft prior
to dismantling.












Parts listed on this page are from a salvaged  1962 Piper PA24-180 Comanche












Bendix - . - TRAY ONLY For KLN 89 GPS

King - 066-1055-03 - KMA-24 Marker Beacon Receiver Isolation Amplifiers

Bendix King - 066-1062-00 - KT-76A ATC TRANSPONDER (14 Volts )

King - 066-3056-00 - KI 208 VOR/LOC CONVERTER/INDICATOR

King - 066-3056-01 - KI 209 VOR/LOC CONVERTER GLIDE SLOPE INDICATOR 11 to 33 volts

Bendix King - 069-1024-38 - KX-155 NAV/760 COMM 14V (Both lens will need replacing)

Bendix King - 069-1024-42 - KX-155 NAV/760 COMM channels audio amplifier 14 Volts with Glideslope

Bendix King - 071-01553-0200 - KA-92 GPS Antenna

PS Engineering - 11905 - PM 1000 II Panel Mount Intercom (Knobs bent - See photos)

AC - 13621-04 - TACHOMETER TT READING 4305.93

Piper - 14171-00 - Plate - Baggage Door Latch - Striker Plate

Piper - 14843-20 - BUSHING- Shim (.125) MLG ARM

Piper - 14843-20 - BUSHING- Shim (.125) MLG ARM

Piper - 14843-47 - Bushing-Stabilator Tab Actuator Arm(QTY 2)

Piper - 14843-93 - BUSHING - Shim (.062) MLG ARM

Stewart Warner - 1501857 - INSTRUMENT - Ammeter AMPS

Stewart Warner - 1508675 - INSTRUMENT - OIL pressure

Stewart Warner - 1508677 - INSTRUMENT - Fuel pressure

AC Delco - 1513480 - INSTRUMENT - OIL TEMP

Stewart Warner - 1518924 - INSTRUMENT - Fuel quantity gauge

Stewart Warner - 1518924 - INSTRUMENT - Fuel quantity gauge

Piper - 16457-00 - Strap - Carburetor Air Box Boot

Piper - 17365-02 - Pad- Jack

Piper - 17365-02 - Pad- Jack

Cleveland - 17766-33 - HOSE ASSEMBLY - Brake lower

Cleveland - 17766-33 - HOSE ASSEMBLY - Brake lower

Piper - 18316-02 - ROD ASSEMBLY - Aileron control

Piper - 18316-02 - ROD ASSEMBLY - Aileron control (See details).

Piper - 18316-02 - ROD ASSEMBLY - Aileron control

Piper - 18457-00 - Ring-Tie Down

Piper - 19513-10 - WASHER - Shim (.035)

Piper - 19513-10 - WASHER - Shim (.035)

Piper - 19513-10 - WASHER - Shim (.035)

Hamilton Standard - 1M12-G - Governor. - Propeller Constant Speed Control

Piper - 20193-36 - Stabilator-LH(Less Trim Tab) SEE DETAILS

Piper - 20256-00 - BELLCRANK ASSEMBLY - Aileron LH

Piper - 20256-01 - Bellcrank-Aileron Right

Piper - 20290-00 - BLOCK - Aileron bellcrank stop

Piper - 20290-00 - BLOCK - Aileron bellcrank stop

Alcor Inc - 202A-7A - GAUGE - EGT (Lens in rough condition) - See photos

Piper - 20304-42 - FLAP LH (Skin damage - See details)

Piper - 20304-43 - Flap RH ( See Details )

Piper - 20329-08 - PLATE ASSEMBLY - Fuel cell cover (See Details)

Piper - 20329-08 - PLATE ASSEMBLY - Fuel cell cover

Piper - 20333-00 - PLATE -Access hole cover

Piper - 20348-00 - Window - Landing Light LH Wing Only (See Details)

ATS - 20355AT-01 - CELL ASSEMBLY - Fuel RH (See Details)

Piper - 20393-00 - FITTING ASSEMBLY- Main gear rear attachment LH

Piper - 20394-00 - FITTING- Main gear rear attachment RH

Piper - 20444-00 - BRACKET -Flap pulley With washer

Piper - 20444-00 - BRACKET -Flap pulley With washer

Piper - 20476-00 - FITTING- Main spar bottom attachment LH (QTY 2)

Piper - 20476-01 - FITTING- Main spar bottom attachment RH (QTY 2)

Piper - 20489-00 - PLATE - Main gear wheel well splash LH

Piper - 20563-00 - SUPPORT - Main spar center

Piper - 20600-70 - STRINGER - Fuselage bottom Sta. 122

Piper - 20729-16 - Rudder (See Details)

Piper - 20730-06 - FIN ASSEMBLY

Piper - 20757-00 - FITTING ASSEMBLY - Main gear forward attachment LH

Piper - 20757-01 - FITTING ASSEMBLY - Main gear forward attachment RH

Piper - 20760-00 - FITTING ASSEMBLY- Main gear side brace support LH

Piper - 20760-01 - FITTING ASSEMBLY- Main gear side brace support RH

Piper - 20767-00 - LINK ASSEMBLY - Main gear side brace - upper

Piper - 20767-00 - LINK ASSEMBLY - Main gear side brace - upper

Piper - 20768-00 - LINK ASSEMBLY - Main gear side brace lower LH

Piper - 20768-01 - LINK ASSEMBLY - Main gear side brace lower RH

Piper - 20798-07 - STRUT ASSEMBLY- Main gear RH

Piper - 20824-00 - PLATE- Brake torque LH

Piper - 20824-01 - PLATE - Brake torque RH

Piper - 20825-00 - PLUG- Wheel end

Piper - 20825-00 - PLUG- Wheel end

Piper - 20825-00 - PLUG- Wheel end

Piper - 20825-00 - PLUG- Wheel end

Piper - 20828-00 - Stud - Main Gear

Piper - 20828-00 - Stud - Main Gear

Piper - 20828-00 - Stud - Main Gear

Piper - 20828-00 - Stud - Main Gear

Piper - 20836-00 - Bellcrank-Stabialtor Trim Tab Control

Piper - 20838-00 - Arm-Stabilator Tab Actuator

Piper - 20845-00 - Bracket & Roller - BUNGEE Shock main gear

Piper - 20845-00 - Bracket & Roller - BUNGEE Shock main gear

Piper - 20854-00 - ROD - Wheel axle tie

Piper - 20854-00 - ROD - Wheel axle tie

Piper - 20910-00 - STRAINER ASSEMBLY - Fuel Tank Finger

Piper - 20928-00 - COVER - Control wheel shaft (black)

Piper - 20928-00 - COVER - Control wheel shaft (black)

Piper - 20942-02 - CABLE ASSEMBLY - Flap control

Piper - 20944-04 - CABLE ASSEMBLY - Flap

Piper - 20944-04 - CABLE ASSEMBLY - Flap

Piper - 20952-00 - SPACER - Landing gear retraction motor reinforcement bracket

Piper - 20953-00 - SPACER - Landing gear retraction motor reinforcement bracket

Piper - 20953-00 - SPACER - Landing gear retraction motor reinforcement bracket

Piper - 21033-00 - BRACKET ASSEMBLY - Landing gear control support

Piper - 21033-00 - BRACKET ASSEMBLY - Landing gear control support

Piper - 21068-00 - Bracket - Gear Door LH (See Details)

Piper - 21068-01 - Bracket- Gear Door RH

Piper - 21103-00 - BRACKET - Main gear limit switch LH

Piper - 21104-00 - PLATE - Main gear switch actuator LH

Piper - 21104-01 - PLATE- Main gear switch actuator RH

Piper - 21112-00 - DOOR ASSEMBLY - Nose gear

Piper - 21173-00 - SPACER - Spring Attachment

Piper - 21173-00 - SPACER - Spring Attachment

Piper - 21173-00 - SPACER - Spring Attachment

Piper - 21173-00 - SPACER - Spring Attachment

Piper - 21174-00 - Strap - Main Gear Spring Attachment

Piper - 21174-00 - Strap - Main Gear Spring Attachment

Piper - 21175-00 - BRACKET - Main gear spring attachment LH

Piper - 21175-01 - BRACKET - Main gear spring attachment RH

Piper - 21178-00 - SWIVEL- Side brace spring attachment

Piper - 21178-00 - SWIVEL- Side brace spring attachment

Piper - 21192-00 - Bracket- Prop Control Support (used with Woodward Governor)

Piper - 21206-00 - BRACKET - Wire support LH

Piper - 21206-01 - BRACKET - Wire support RH

Piper - 21208-00 - PLATE -Auxiliary door latch trim

Piper - 21215-00 - LINK - Gear safety switch arm LH

Piper - 21219-00 - Terminal and Rod - Gear safety switch actuating LH

Piper - 21220-00 - ARM - Gear switch actuator LH

Piper - 21221-00 - BRACKET - Gear safety switch mounting LH

Piper - 21229-00 - LINK- Flap bellcrank tension

Piper - 21474-00 - SEAL ASSEMBLY - Auxiliary door latch

Piper - 21475-00 - Plate-Seal Retaining

Piper - 21552-00 - TIP ASSEMBLY - Left wing - Fiberglass (See details)

Piper - 21552-01 - TIP ASSEMBLY FIBERGLASS - RH wing (See Details)

Piper - 21557-00 - TIP - Fin plastic

Piper - 21609-02 - STRAP - Upper Cowl attachment

Piper - 21609-02 - STRAP - Upper Cowl attachment

Piper - 21760-00 - LUG - Gear retraction motor attachment

Piper - 21785-02 - Placard-Door Latch

Piper - 21839-00 - BRACKET - Gear retraction switch

Piper - 21943-03 - Air Box - Carburetor (See Details)

Piper - 21947-03 - SCOOP ASSEMBLY - Bottom cowl (Dented - See photos)

Piper - 21958-22 - MOUNT-ENGINE (Weld repair - See photos)

Piper - 22181-00 - PANEL ASSEMBLY -Wing LH

Piper - 22181-01 - WING PANEL ASSEMBLY - RH

Piper - 22270-00 - RESERVOIR - Brake Fluid

Piper - 22282-03 - LINE - Fuel (TO STRAINER)

Piper - 22338-00 - DUCT - Cabin hot air left

Piper - 22338-01 - DUCT - Cabin hot air RH

Piper - 22399-06 - DOOR ASSEMBLY - Cabin (See details)

Piper - 22520-00 - Plate - Fuel Strainer Access

Piper - 22857-12 - COWL ASSEMBLY - Engine bottom (See details)

Piper - 22955-00 - SEAT ASSEMBLY - Front left

Piper - 22955-01 - SEAT ASSEMBLY - Front right

Piper - 22984-00 - Door-Main Gear LH (Cracked)

Piper - 22984-01 - Door-RH Main Gear (CRACKED)

Piper - 23358-00 - BRACKET ASSEMBLY - Throttle limit switch

Piper - 23400-00 - BRACKET - RADIO SUPPORT LEFT (see photos)

Piper - 23426-00 - PLATE ASSEMBLY - Fuel cell access LH

Piper - 23426-01 - PLATE ASSEMBLY - Fuel cell access RH

Piper - 24353-03 - ADAPTER- Fuel cell drain 180 & 250

Piper - 28127-00 - LIGHT ASSEMBLY - Alternator inoperative

Cleveland - 3070 - WHEEL AND DISC - Main (3070 40-5) 451 765

Cleveland - 3070 - WHEEL - Main (3070 40-5) 451 765

Piper - 31322-07 - BUNGEE CORD - Shock main gear

Piper - 31322-07 - BUNGEE CORD - Shock main gear

Piper - 400 757 - CLEVIS BOLT - (AN26-21)

Piper - 400 757 - CLEVIS BOLT - (AN26-21)

Piper - 401-347 - BOLT - (AN4-55A) or #401 346 (AN4-54A)

Piper - 402 032 - BOLT - Eye (AN42B-5)

Piper - 402 960 - BOLT - (NAS464P8A-44)

Piper - 402 960 - BOLT - (NAS464P8A-44)

US GAUGE CO - 450 787 - INSTRUMENT - Suction gauge

Cleveland - 451 716 - BRAKE ASSEMBLY- Cleveland (#3000-250)

Cleveland - 455 929 - CYLINDER ASSEMBLY - Master (10-5)

Cleveland - 455 929 - CYLINDER ASSEMBLY - Master (10-5)

Piper - 458 890 - FITTING- Elbow (AN823-5D)

Piper - 472 661 - Light - Landing (PS10008-4509)

Piper - 487 820 - SWITCH - Limit Switch (See Details)

Piper - 487 820 - SWITCH - Limit Switch (See Details)

Piper - 487 820 - SWITCH - Limit Switch removed from LH (See Details)

Piper - 487-803 - SWITCH - Master (8740K9)

Piper - 687 282 - Gauge-Fuel Sending Unit (INOP) CORE

Piper - 687 282 - Gauge-Fuel Sending Unit (INOP) CORE

Piper - 760 502 - Cabin Door Holder

Piper - 80122-91 - Washer

Piper - 80122-91 - WASHER

Piper - 83302-40 - Spring - Coil

Piper - 85062-86 - AXLE (PITTING SEE PHOTOS)

Piper - 85062-86 - AXLE (PITTING SEE PHOTOS)

Piper - 86062-87 - SPACER - Main Wheel

Piper - 86062-87 - SPACER - Main Wheel

Piper - 86062-87 - SPACER - Main Wheel

Piper - 86062-87 - SPACER - Main Wheel

Whelen - A650-PG - Light - RH Navigation and Strobe Wing Tip Green

Piper - A650-PG - Light - LH Navigation and Strobe Wing Tip Red

Ranco, Inc. - AN 5770-1 - AS-IS Manifold Pressure Gage Face is Broken NO RETURNS

Beechcraft - AN5546-1 - Bulb - Cylinder Head Temperature w/ Adapter

AUTOLITE - AN5795-6 - DUAL GAUGE - CYLINDER HEAD AND CARB MIXT TEMP

Narco - AR-850 - Altitude Reporter AR 850 - 25 pin

RA-MILLER - AV-571 - ANTENNA COUPLER

Piper - C-4549-1 - Adapter - Spinner Bulkhead (Approx 12 3/4 wide)

Piper - D-5769-1P - Spinner-Dome Propeller (Metal)

Troll Avionics, Inc. - FN-200 - Ice Box Avionics Cooling Fan 14V

Whelen - HD,T2 - WHELEN STROBE MODEL HDT2 (14V)

Piper - MPN - EXHAUST ASSEMBLY - (SET)

Piper - NPN - RHEOSTAT ASSEMBLY

Piper - NPN - Seat - Rear Bench

Piper - NPN - BRACKET - Main gear limit switch RH

Piper - NPN - BRACKET-SWITCH - Safety LH

Piper - NPN - PANEL - Overhead lights (See details)

PRECISION AVIATION - PAI-700 - Compass - Vertical Card Magnetic W/Mount (INOP)

PLANE POWER - R1224 - Voltage Regulator (14V)

Rapco - RA 1J7-1 - VACUUM INLET

Piper - SET - BELLCRANK ASSEMBLY - Flap

Piper - SET - BELLCRANK ASSEMBLY - Flap

Piper - SET - GEAR INDICATOR LIGHTS GREEN AND AMBER

Piper - SK928-11 - COWL ASSEMBLY - Engine top

Slick - SS1001 - SLICK START - Ignition Booster 12V-24V

Potter & Brumfield - W31-X2M1G-30 - Switch Avionics Master 30-Amps w/BUS BAR

Potter & Brumfield - W31-X2M1G-30 - Switch Avionics Master 30-Amps w/BUS BAR

Click here to view our > Privacy Policy  July 14, 2026, 12:39 am
© 2006 - 2024 Texas Air Salvage. All rights reserved.
